Microchip Debuggers & Programmers.

1.Microchip Snap.

• Microchip Snap - [EN].
• Shop Mouser.
• Shop Farnell element14 - [FR].
• Shop RS Components - [FR].

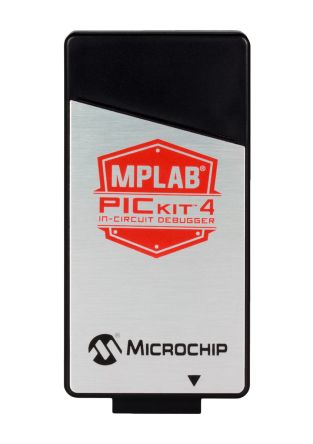

2.Microchip PICkit 4.

• Microchip PICkit 4 - [EN].
• Shop Mouser.
• Shop Farnell element14 - [FR].
• Shop RS Components - [FR].

3.Configure Snap or PICkit 4.

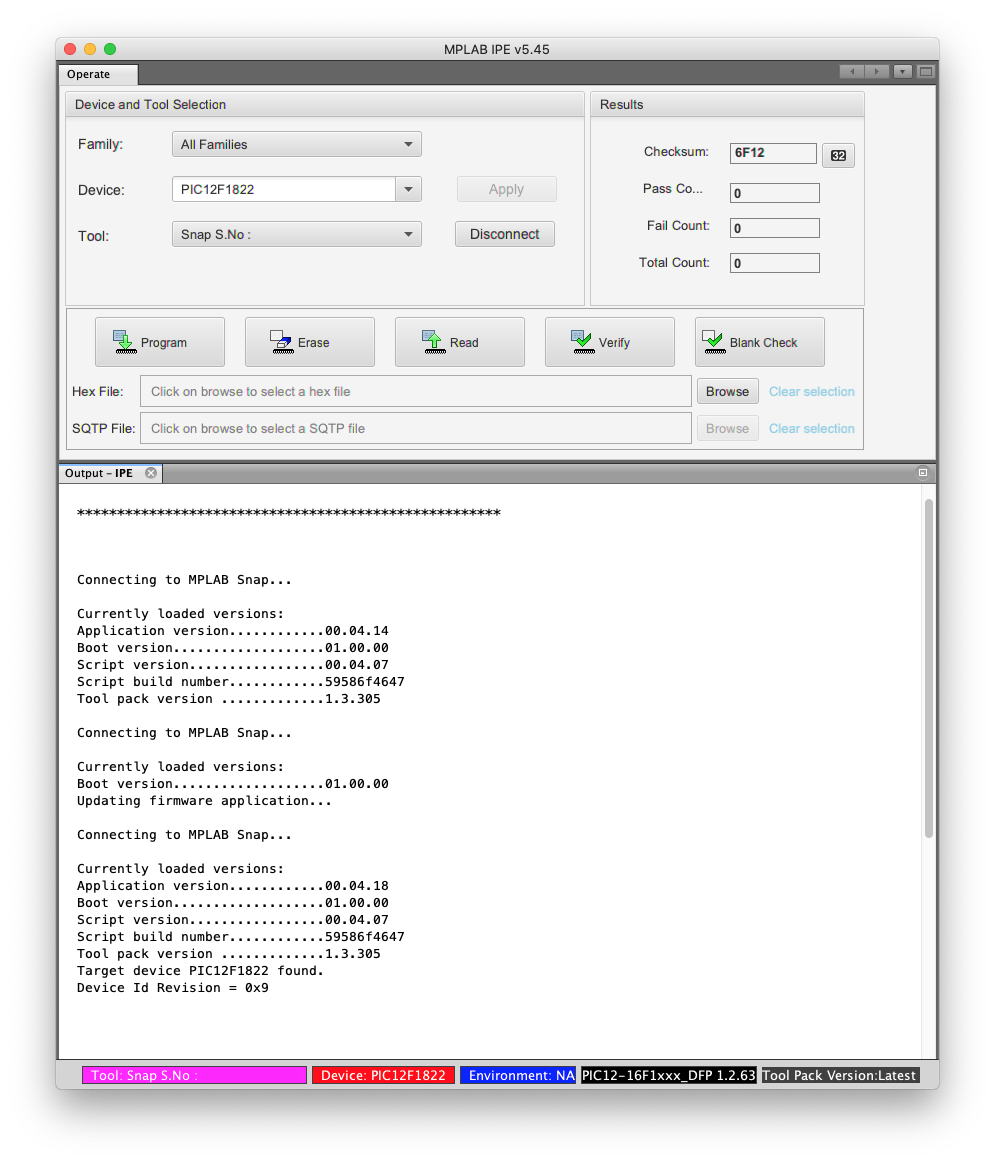

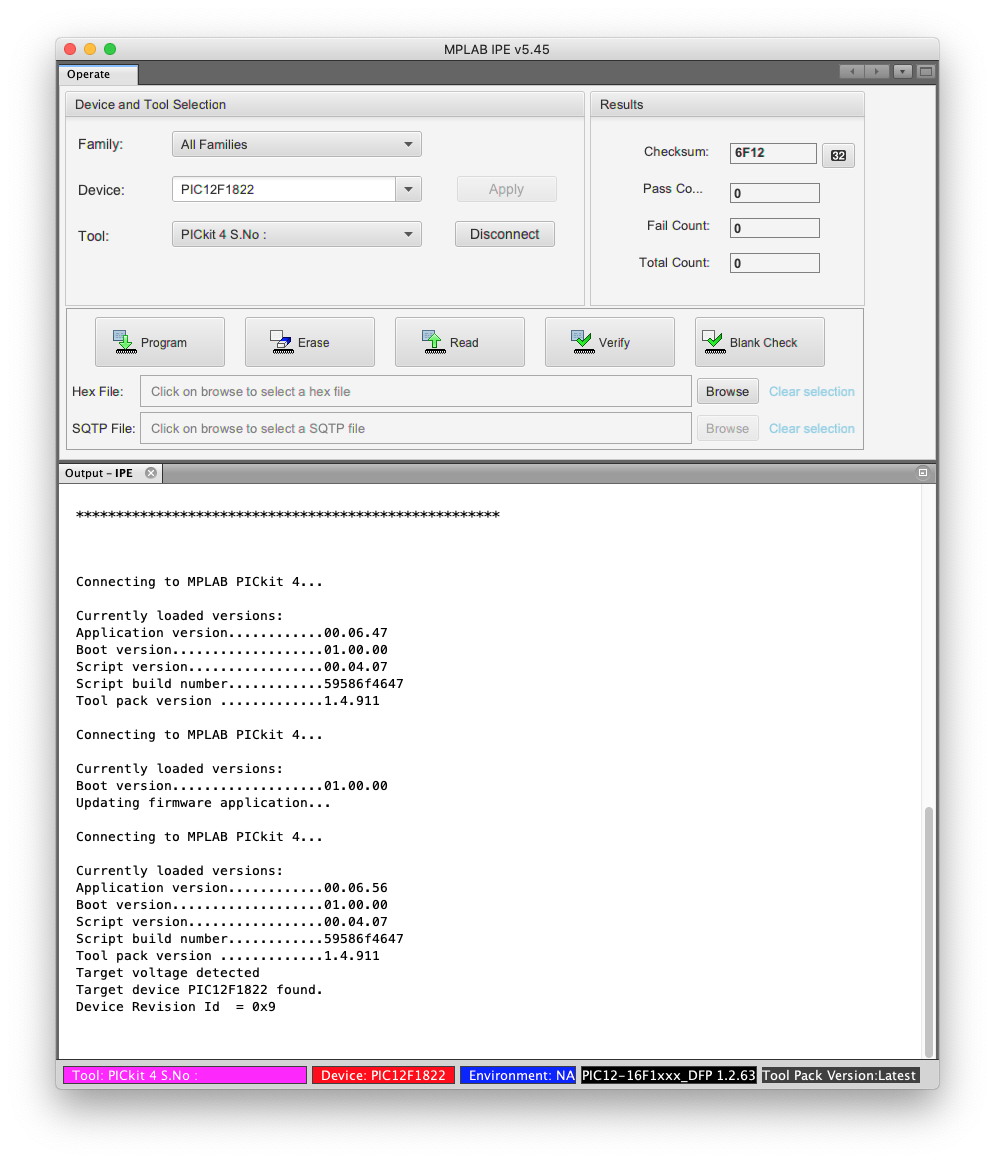

• Launch MPLAB-IPE (Integrated Programming Environment).
• Connect Snap or PICkit 4 to USB.
• Connect Snap or PICKit 4 to target MCU.
• Select MCU Family, Select Device > Apply.
• Select Tool > Connect.

• If target board not powered go to :
  • Only PICkit 4, Snap can't power target MCU.

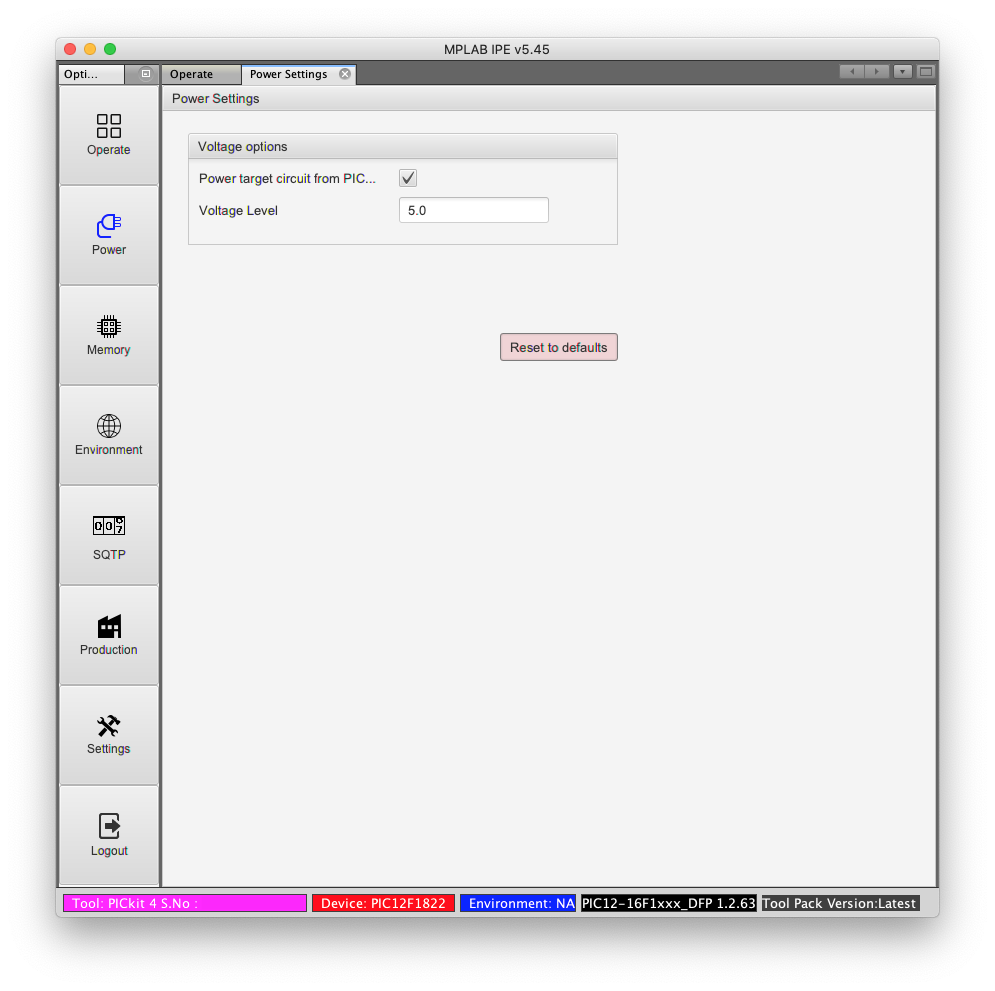

  • Settings > Advanced Mode > Power > Voltage Options > Power Target Circuit from PIC...
  • Be sure Voltages are good for the target MCU.
